4stroke

TECHNICAL FICHE

DESIGN CONFIGURATOR

Click on the brands to see their graphic customization
testo alternativo immagine
testo alternativo immagine
testo alternativo immagine
testo alternativo immagine
testo alternativo immagine
testo alternativo immagine

DIMENSIONS


Length 1.985 mm


Max width (rear) 1.367 mm


Height 645 mm


Weight (Honda GX 270 cc) 160 kg

ENGINES


Honda GX 270 cc engine


Honda GX 270 cc engine with RPM limiter


Honda GX 390 cc engine


Honda GX 390 cc engine with RPM limiter


Honda engine mounting kit


OPTIONS


Ballast support box


Kart remote control transponder

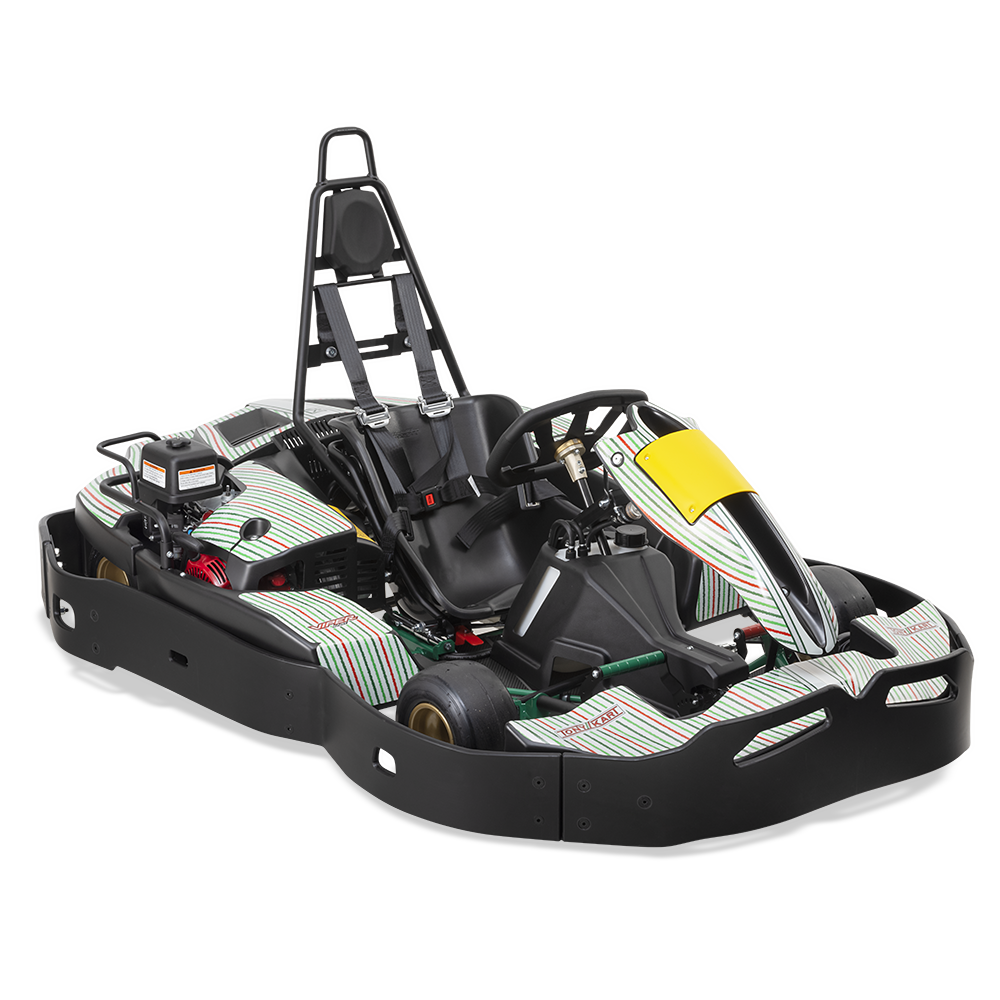

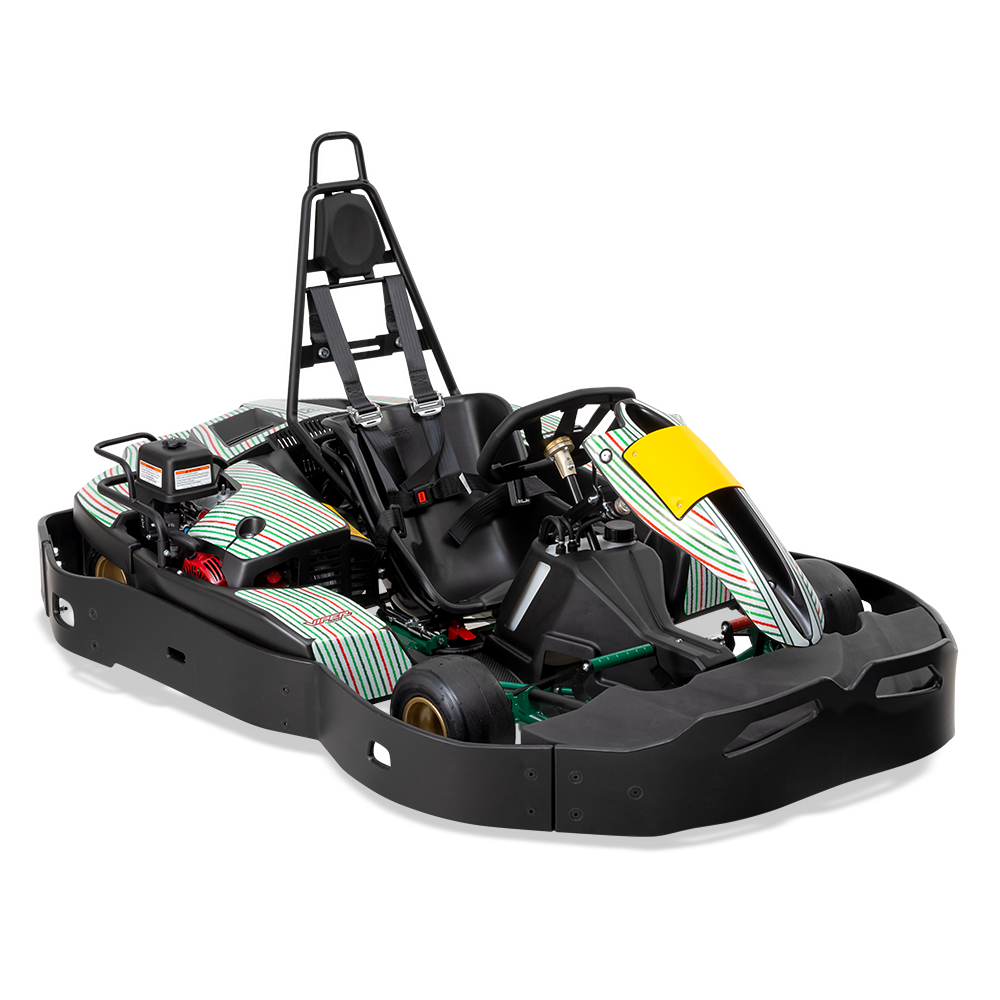

Roll-bar with four-point safety belts


Seat booster


Personalized sticker kit


Bridgestone YDS tire set


Exhaust system with catalytic converter


Engine hour meter

MAIN FEATURES


Adjustable pedals


Adjustable seat with reinforced structure


Cushioned steering column


Steering wheel with 300 mm diameter


Polizene perimeter protection


Polyurethane shock absorber


Chain or belt-driven transmission with tensioner


Cut-Off system that prevents accelerating and braking at the same time


Brake system with two-piston floating caliper and stroke recovery, hydraulic brake pump with oil tank, self-ventilated disc, quick pad changing system


Mono-block aluminum rims


Stainless steel floor pan


Axle 40x5 mm


Reinforced stub axles


Protection kit for brake disk and sprocket


9-liter capacity tank


Nylon steering rods with reinforcing bush

testo alternativo immagine
DOWNLOAD
THE BROCHURE

To find out all the possibilities of Viper Kart customisation see the dedicated brochure:
